Description

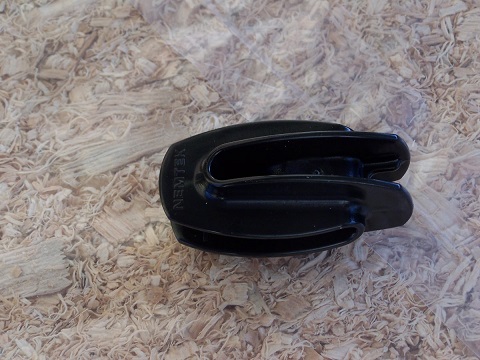

Ultra End Insulator- Black EI-STB/R The Strain Insulators are used to isolate the wire from the corner post, on the opposite side of the tensioners. There are three options available: Jumbo, Ultra and Ultra Hardened
Features:
- Ultra Strain Insulator
- Suitable for fences using up to 2.0mm wire
- Operating tension of 25kg
- Larger tracking distance to reduce power loss and arcing
- Suitable for medium-tensioned fences
- Ultra Hardened Strain Insulator
- Suitable for fences using up to 3.0mm wire
- Operating tension of 140kg
- Larger tracking distance to reduce power loss and arcing
- Suitable for high-tensioned fences
Specifications:
| Material | UV stabilised plastic |
|---|---|
| Colour | Black White |
| Operating temperature | -40 to 80°C |
| Operating voltage | 0 – 12KV |
| Recycling | SPI 2 |
| Stock Code | Description |
|---|---|
| EI-STB/J | Jumbo Strain Insulator Black |
| EI-STW/J | Jumbo Strain Insulator White |
| EI-STB/R | Ultra Strain Insulator Black |
| EI-STW/R | Ultra Strain Insulator White |
| EI-STB/R/H | Ultra Hardened Strain Insulator Black |
| EI-STW/R/H | Ultra Hardened Strain Insulator White |
